Available Models

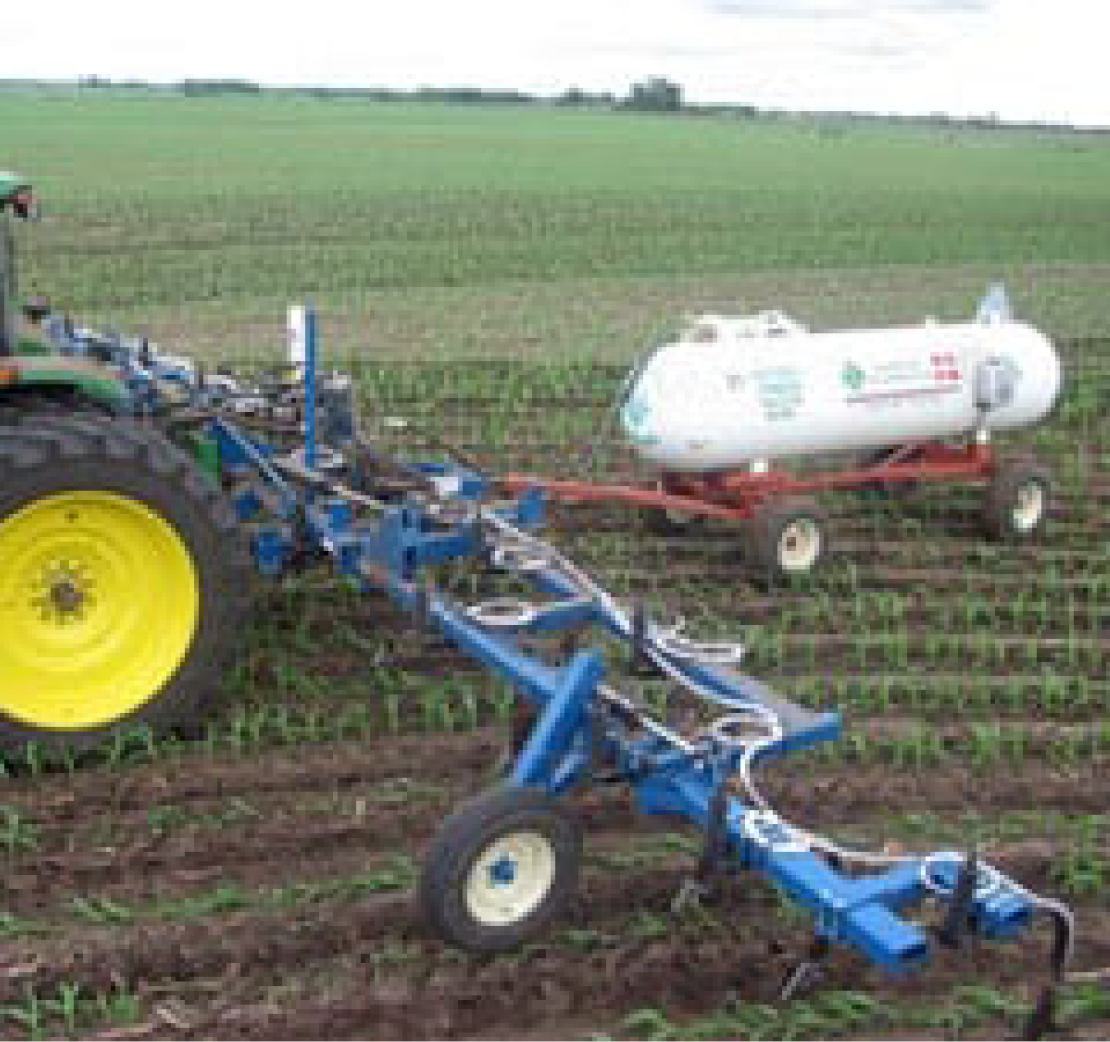

3000 Series
Most rugged 3-point toolbar in the industry
Precise in-field delivery with versatility and low-maintenance construction built to handle a wide variety of applicator conditions
4" x 6" Heavy Walled Toolbar
Inline Transport for long distance towing
Built to handle the weight of coulters, disc covers, and spring bundled shanks
Built to adapt to all row spacings

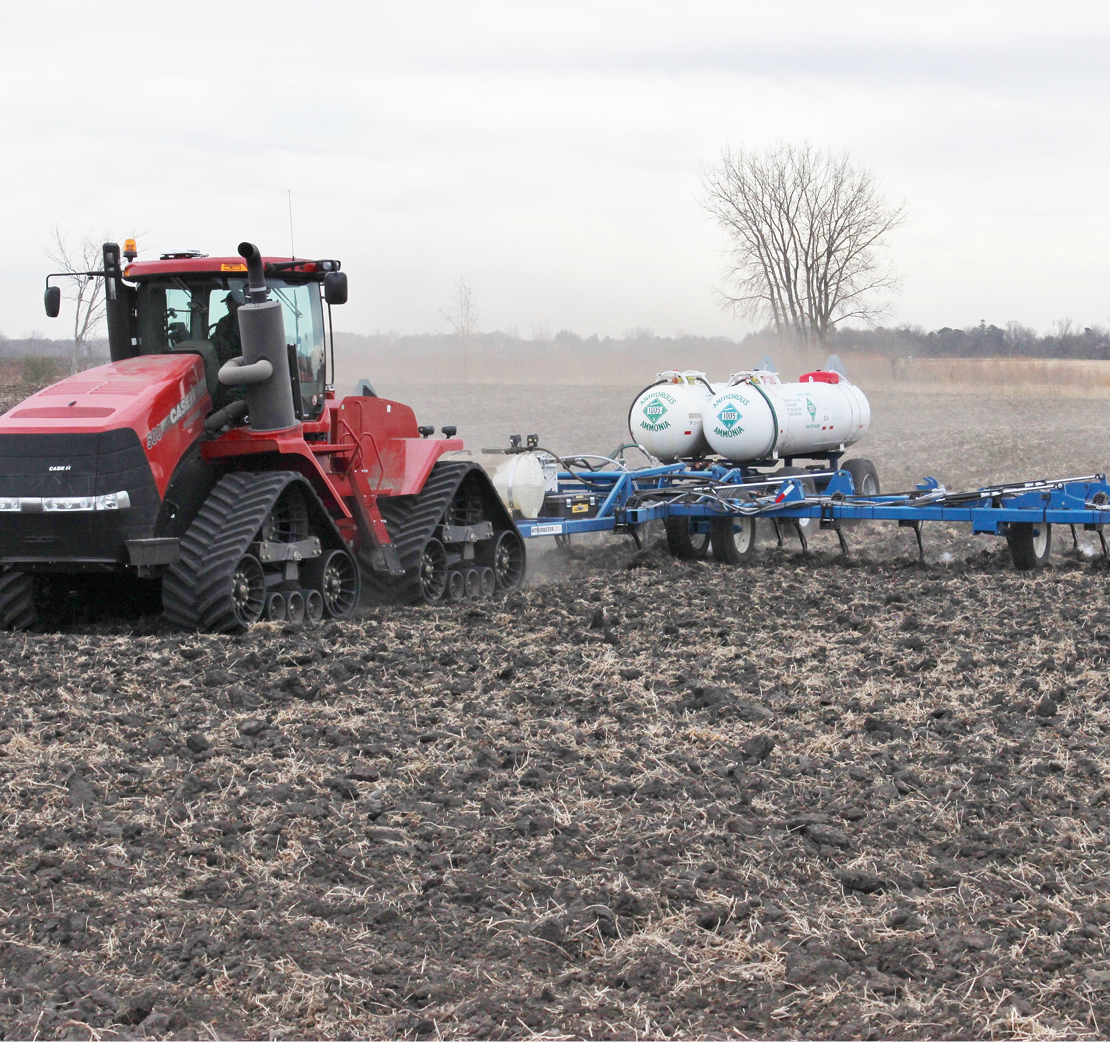

7200 Series
Extreme durability for high capacity application
Powerful output with long-lasting strength and enhanced features designed to easily endure al the demands of your in-field needs
Superior heavy-duty 4" x 6" x 1/2" wall tubing
Designed to carry the heavy loads of coulters, spring bundles, and disc covers
Built to adapt to most row spacing configurations
Adjustable walking tandem axles

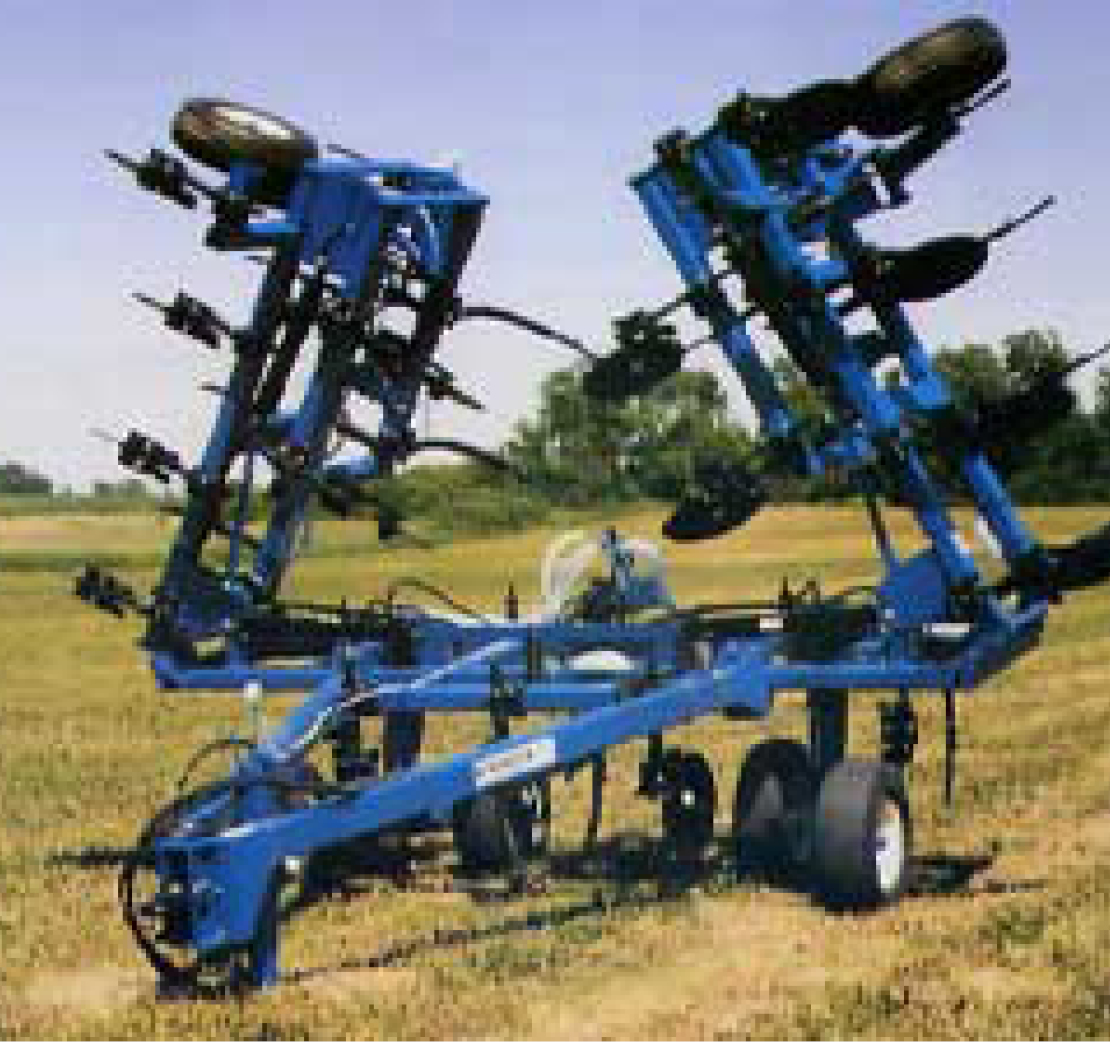

8500 Series
Big, strong, and flexible to handle all of your field requirements
The 8500 toolbar was designed with strength in mind
Super heavy duty 6" x 6" x 1/2" wall tubing
Designed to carry the heavy loads of coulters, spring bundles, and disc sealers
Built to adapt to most row spacing
Hydraulic lift system provides a uniform lift
Heavy duty walking tandem axels
3000 Specifications
- 21' 27' 32' 37.5' or 42' Available Sizes
- 3" x 3" Tubing 28 1/2" Long In Line Transport Pole
- CAT III 3-point hitch
- Rear Nurse Tank Hitch Telescopes out 12" and Swings a Full 30"
- Primary Wing - Double bar 4" x 6" x 3/8" Wall Tubing
- Secondary Wing - Single bar 4" x 6" x 3/8" Wall Tubing
- 37' & 42' Wing
- Hydraulic Wing Folds to 117 degrees
- 13' 6" Wide Double Bar 4" x 6" x 3/8" Center
- 30" Center to Center Between Ranks
- Adjustable gauge wheels with 6.70 x 15 Tires
- Optional 11L x 15 Implement Tires
- 12' 10" Transport Height
- 19' 8" Transport Width
- 8' Overall Length
- Heavy-duty 4" x 4" Pole Jack/Jackstand - 10,000 lbs capacity
7200 Specifications
- 21' 27.5' 29.5' 32.5' 37.5' 40' or 42.5' Available Sizes
- 11' 3" Long and 7' 3" Wide In Line Transport Pole
- 4" x 6" x 3/8" Wall
- Patented Adjustable CAT III & IV Tractor Clevis
- Rear Nurse Tank Hitch Telescopes out 12" and Swings a Full 30"
- Primary Wing - Double bar 4" x 6" x 3/8" Wall Tubing
- Secondary Wing - Double bar 4" x 6" x 3/8" Wall Tubing
- Flat Folding Wings
- Hydraulic Wing Folds to 117 degrees
- 13' 6" Wide Double Bar 4" x 6" x 1/2" Wall Tube
- 38" Center to Center Between Ranks
- 11L x 15 Implement Tires on 8" Rims
- 13' 6" Transport Height with Shanks on 30" Rows
- 19' 2" Transport Width with Shanks on 30" Rows
- 19' Overall Length
- Heavy-duty 4" x 4" Pole Jack/Jackstand - 10,000 lbs capacity
8500 Specifications
- 16.5' Center Section - 40' 50' 55' 60' Available Size
- 19' Center Section - 42.5' 52.5' 60' or 62.5' Available Size
- 11'5": Long and 8' 5" Wide In Line Transport Pole
- 4" x 6" x 3/8" Wall
- Patented Adjustable CAT III & V Tractor Clevis
- Rear Nurse Tank Hitch Telescopes out 12" and Swings a Full 30"
- Primary Wing - Double bar 11' Wide 6" x 6" x 3/8" Wall Tubing
- Secondary Wing - Double bar 6" x 6" x 3/8" Wall Tubing
- Flat Folding Wings
- Hydraulic Wing Folds to 117 degrees
- 16' 5" Wide Double Bar 6" x 6" x 1/2" Wall Tube
- 70" Center to Center Between Ranks
- 11 x 22.5 Highway Tires and Rims
- 8 Ply Tires
- 15' 2" Transport Height with Shanks on 30" Rows
- 20' 8" Transport Width with 16' 6" Center Section
- 23' 3" with 19' Center Section
- 22' Overall Length
- Heavy-duty 4" x 4" Pole Jack/Jackstand - 10,000 lbs capacity
